Gratingstype-RR
type-RR
Product Description

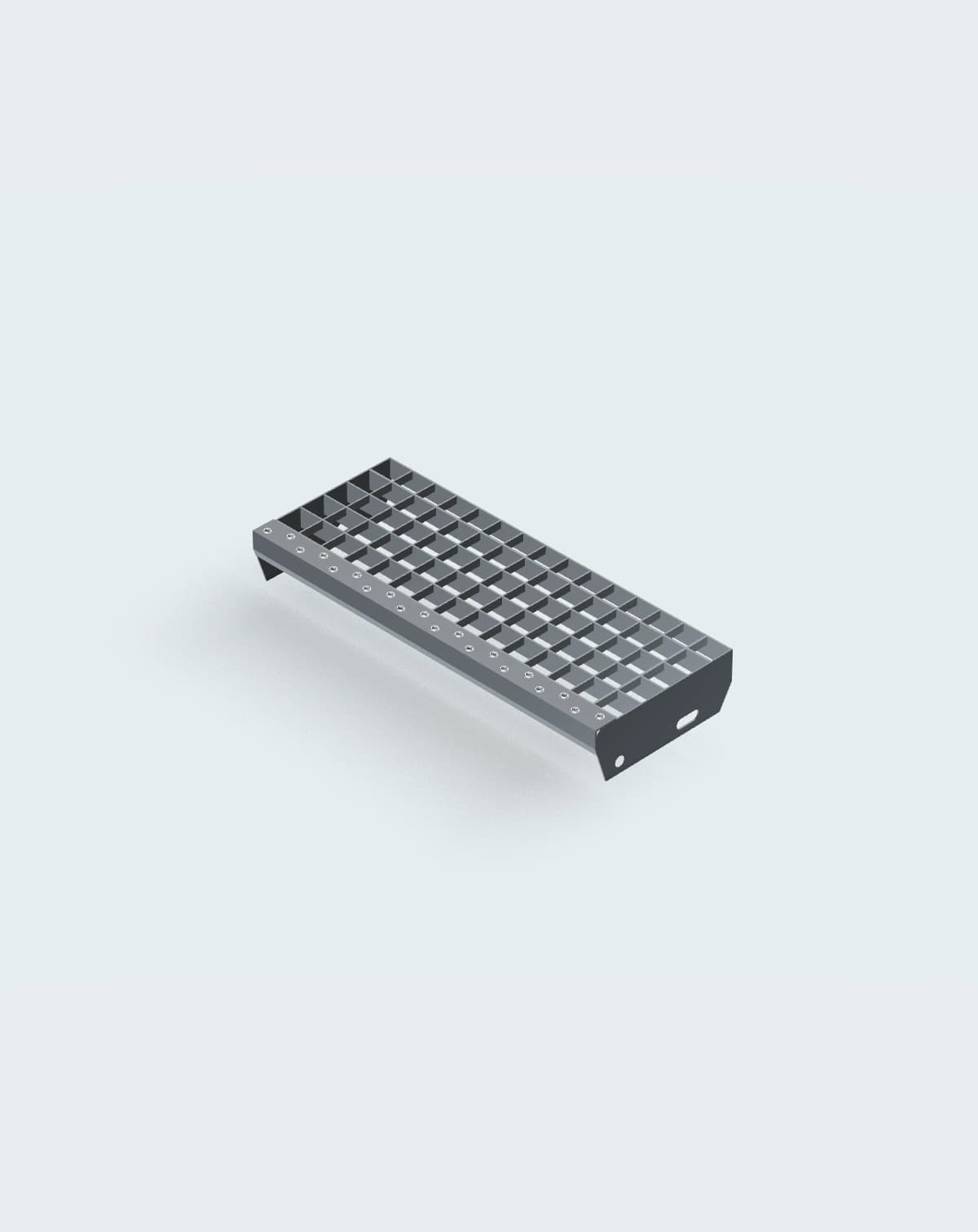

The Pressed gratings is the most widely used grating in Europe. It consists of a solid grid of bearing and cross bars made of high-quality strip steel in various thicknesses. These Pressed gratings, also known as walk gratings or floor gratings, are machine-pressed together and fitted with a solid outer edge. The simplicity of this panel type makes it versatile. The range of applications include flooring, wall panels, canopy panels, and stair treads. In addition to it being durable, it’s recyclable and strong.
- The most widely used floor grating in Europe
- Various standard sizes available, including anti-slip
- Can be custom-made for every project
Product Specifications
| Length | 500 mm |
|---|---|
| Width | 200 mm |
| Bearing Bar | 25-2 mm-mm |
| Cross Bar | 10-2 mm-mm |
| Bearing Bar Mesh | 34 mm |
| Cross Bar Mesh | 33 mm |
| Material | Steel S235 |
| Unit Weight | 20.50 kg / m² |
| Weight | 2.05 kg |
| Serrated | No |
| Side Plates | Yes |
| Delivery Time | 3 weeks |
| MKI Score | 9.372 € / m2 |
From € 5.54
Gratings—
€ 5.54
You have not verified the product. It is recommended to verify its application with the Eurocode requirements.
